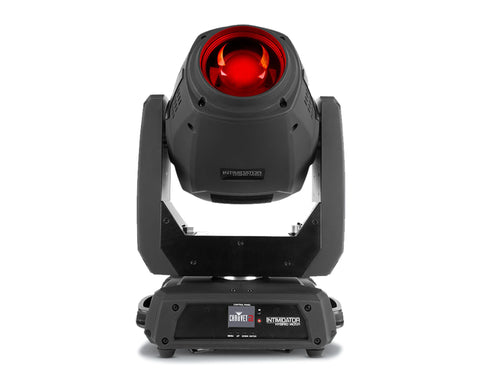

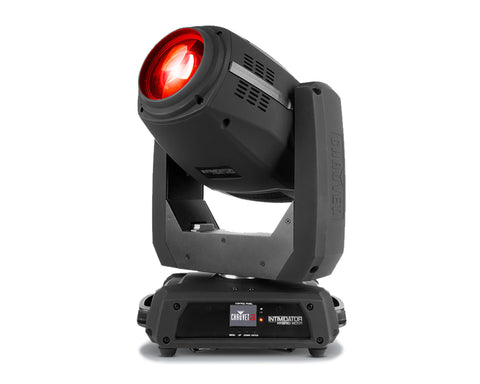

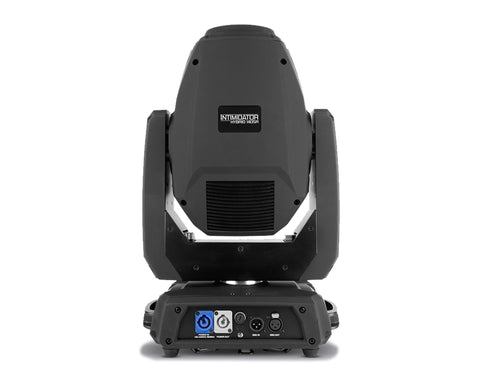

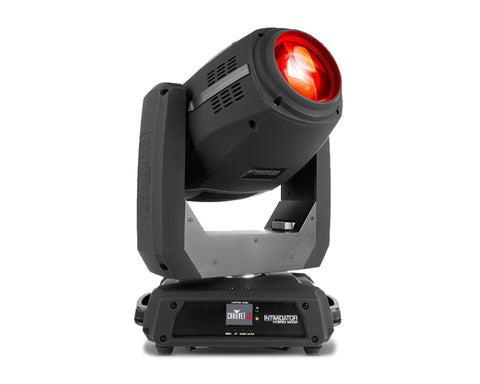

- Chauvet Intimidator Hybrid 140SR - Spot / Beam / Wash Effect Moving He
Description:
True hybrid moving head fitted with an intense 140 W discharge light engine
All-in-one light fixture morphs from SPOT to BEAM to WASH effortlessly
Dual, overlapping prisms with independent control multiply the beam dynamics
Dual gobo wheels allow for gobo morphing and amazing mid-air projections
Motorized zoom works in beam, spot and wash modes for ultimate light control
Unique ¼-turn hanging bracket allows for single or dual clamp mounting options
Emit crisp projections at almost any distance using the motorized focus
Glass optics ensure crisp beams and gobos at all times
Flexible menu option accepts Osram 132 W lamps if needed
Full-colour display with IRC-6 compatibility, totem mode and on-board memory for storing a scene
powerCON®-compatible power input/output connections for power linking
SPECIFICATIONS:
DMX Channels: 13 or 19
DMX Connectors: 3-pin XLR
Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 270° tilt
Colours: 12 + white, split colours, continuous scroll at variable speeds
Gobos
Wheel (1): 9 + open, rotating, interchangeable, slot-n-lock, continuous scroll at variable speeds
Wheel (2): 17 + open, aluminium, continuous scroll at variable speeds
Light Source
(Included): Osram Sirius HRI 140 W discharge lamp (6,000 hrs)
(Optional): Osram Sirius HRI 132 W discharge lamp (6,000 hrs)
Strobe Rate: 0 to 20 Hz
Illuminance
(3° beam): 382,000 lux @ 5 m
(7° spot): 104,700 lux @ 5 m
(14° wash): 4,680 lux @ 5 m
Power Linking: 3 units @ 120 V; 6 units @ 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current
260 W, 2.5 A @ 120 V, 60 Hz
254 W, 1.3 A @ 230 V, 50 Hz
Gobo Size: (rotating): 13.7 mm outside, 11 mm image, 1 mm max thickness
Zoom Angle
(Beam): 3° to 11°
(Spot): 7° to 21°
(Wash): 14° to 28°
Physical & Dimensions
Weight: 15.2 kg
Size: 322 x 220 x 513 mm
Approvals: CE, MET
Gobo wheel
(1): 9 + open, rotating, interchangeable, slot-n-lock, continuous scroll at variable speeds
(2): 17 + open, metal, continuous scroll at variable speeds
Optional Controllers: IRC - 6
