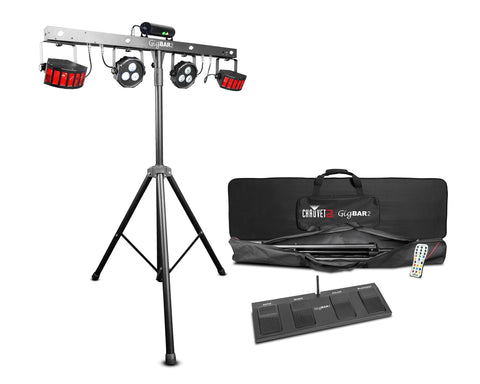

- Chauvet GigBAR2 - IRC Multi-Effects Lighting Bar with IRC-6 Remote
Description:

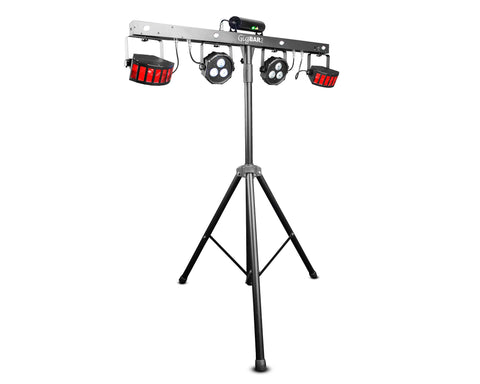

4-in-1 light that includes a pair of LED Derby, LED pars, a laser, and strobe effect all mounted on one bar
Added UV in pars and strobes for increased colour mixing and effects
Cover any room or stage with 4 individually adjustable and interchangeable heads

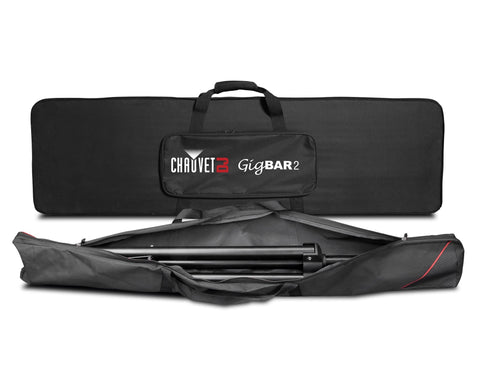

Get in and get out quickly with the included tripod, wireless footswitch and FREE carry bags
Ready for every application using the included mounting brackets to attach to truss
4 high-power, LED strobe lights create exciting chase and slow motion effects
Adjustable red and green laser scatters hundreds of bright dots and beams in all the right directions.
Phenomenal built in automated and sound-activated programs that include all 4 effects to make one complete show

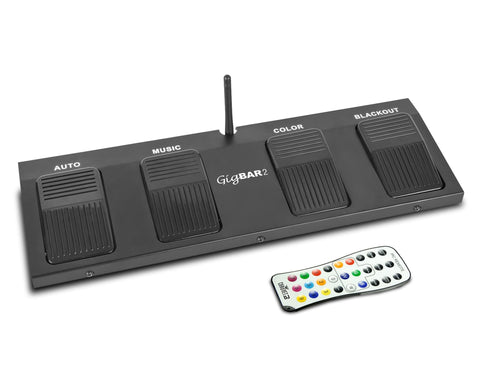

Easily control from the display, included IRC-6, wireless foot switch or DMX to take your gig to a higher level
Master/slave multiple units under the control of a single IRC or wireless foot switch
Save time running cables and extension cords by power linking multiple units
SPECIFICATIONS:
DMX Channels: 3, 11 or 23DMX Connectors: 3-pin XLR
Light Source
Pars: 6 LEDs (Quad-colour RGB+UV) 3.5 W (1.1 A), 50,000 hours life expectancy
Strobe: 4 LEDs (white & UV) 1.8 W (600 mA), 50,000 hours life expectancy
Derby: 6 LEDs (2 red, 2 green, 2 blue) 6 W (1.7 A), 50,000 hours life expectancy 650nm/100 mW (red) laser diode, 532nm/30 mW (green) laser diode
Strobe Rate: (strobe): 0 to 18 Hz
Beam Angle
(pars): 13°
(strobe): 8°
Field Angle
(pars): 24°
(strobe): 18
Coverage Angle
(laser): 93°
(Derby): 114°
Fits Tripod Size: 37.4 mm
Illuminance
(pars): 1,205 lux @ 2 m (per head)
(strobe): 86 lux @ 2 m (per zone)
Power Linking: 8 units @ 120 V; 15 units @ 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 68 W, 1 A @ 120 V, 60 Hz | 64 W, 0.5 A @ 230 V, 50 Hz
Physical & Dimensions
Weight: 6.6 kg
Size: 1185 x 110 x 386.5 mm
Approvals: CE, FDA, FCC
Stand Height: 1.5 to 2.5 m
Tripod leg width: 1.2 m
Foot Switch Operating Frequency: 433 MHz
Foot Switch Max Unobstructed Distance: 30.5 m
Footswitch battery: 12 V A23
