Description:

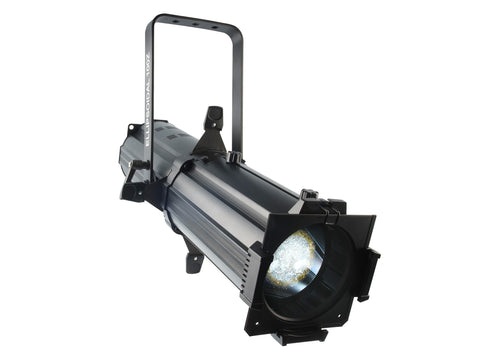

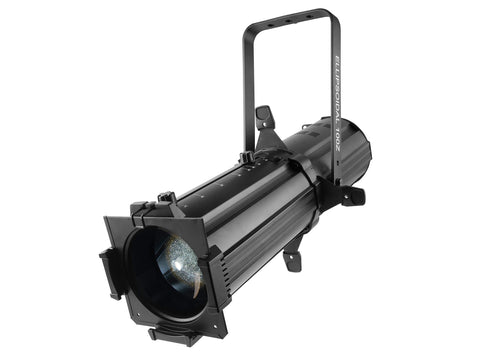

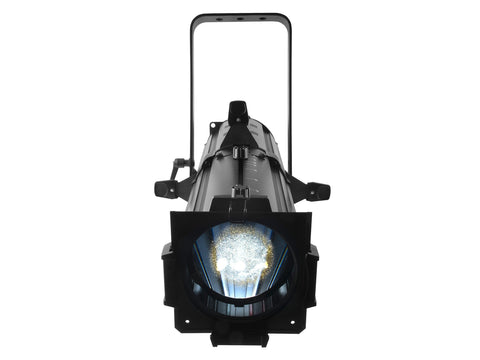

EVE E-100Z is a powerful spot fixture featuring sharp pattern projection with a 100 W warm white LED light source. This versatile fixture works with metal or glass gobos to create incredible gobo or pattern details. The manual zoom and framing shutters make it simple to control beams.
LED Ellipsoidal shines a hard-edged, warm white spot in any direction
Easily highlight areas by altering the projected beam with framing shutters
Flexibility to project from any distance using the manual zoom
Includes holders for glass and steel gobos and a gel frame
Save time running extension cords by power linking multiple units
Eliminate the need for DMX control with standalone operation
Colour Temperature: 3500K Warm White
SPECIFICATIONS:
DMX Channels: 1 or 3
DMX Connectors: 3-pin XLR
Light Source: 1 LED 100 W (2.3 A), 50,000 hours life expectancy
Colour Temperature: 3500K Warm White
Strobe Rate: 0 to 30 Hz
Illuminance: (14°): 15,100 lux @ 2 m | (30°): 3,800 lux @ 2 m
Power Linking: 9 units @ 120 V; 16 units @ 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 106 W, 0.9 A @ 120 V, 60 Hz | 103 W, 0.5 A @ 230 V, 50 Hz
Gobo Size: M (66 mm outside, 48 mm image, 2 mm max thickness)
Zoom Angle: (manual): 14° to 30°
Physical & Dimensions
Weight: 5.7 kg
Size: 611 x 183 x 430 mm
Approvals: CE, MET
