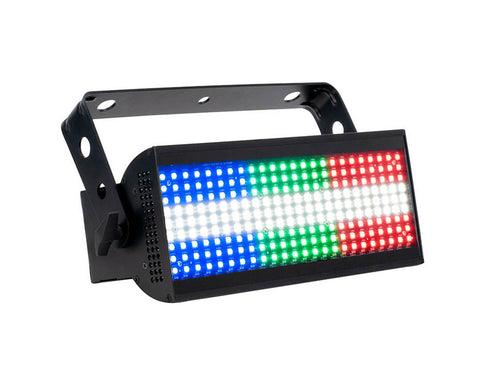

- ADJ Jolt 300 - Strobe Fixture 144x1.5W RGB and 144x0.5W White LEDs
Description:
The rear panel has conveniently located connections with 3-pin and 5-pin DMX input connections along with a Locking Power input to receive power. On the other side of the rear panel are the 3-pin and 5-pin DMX outs and the locking power out connections. This enables the unit to receive and pass through power and data to another Jolt 300 fixture. There is also a USB input that allows uses a fast and convenient way to update firmware.
The Jolt 300 offers users an easy way to navigate the built-in features from a LCD display with a 4-button menu system. The display allows users to change dimming modes, dimming speed, programs, color macros, LED refresh rate, gamma settings and DMX channel modes.
A scissor yoke, and an omega bracket come with the fixture so the it can be attached to a clamp and hung on truss.
SPECIFICATIONS:
Light Source
144x 1.5W RGB SMD LEDs + 144x .5W Cool White SMD LEDs
120-degree Beam Angle
6000k Color Temperature (White LED’s only)
50,000 Hour Average LED Life
Control
Control Protocol: DMX
6 DMX Modes: 4, 8, 10, 10a, 12,15, 18 and 18a
Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)
Dim Speed control (0.1~10 Seconds)
0-100% Dimming
Strobe, shutter & pulse control
Adjustable LED Refresh Rates (900~25kHz)
Adjustable Gamma Settings (1.0-2.8)
With Wired Digital Communication Network
Display: LCD display with 4-button touch menu
Compatible with ADJ’s UC IR wireless remote
Connections
Data: Locking 3-pin & 5-pin DMX In/Out
Locking Power In/Out to daisy chain power
Scissor yoke
Omega bracket attachment
Safety bolt
USB port to update firmware
Electrical
100-240V 50Hz/60Hz (Auto Sensing)
Max Power Consumption: 226W
Dimensions / Weight
Length: 16” (405mm)
Width: 7” (175mm)
Height: 5.25” (130mm)
Weight: 8.5 lbs. (3.8kg)
