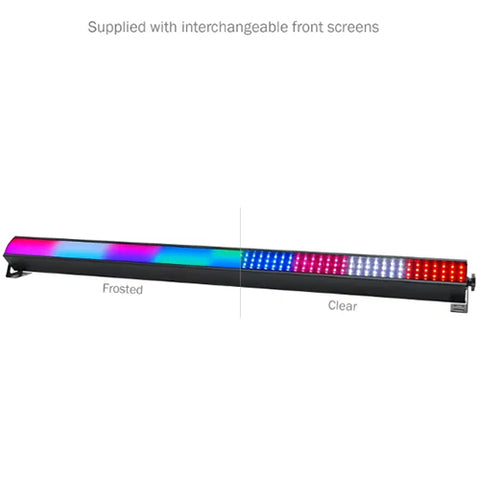

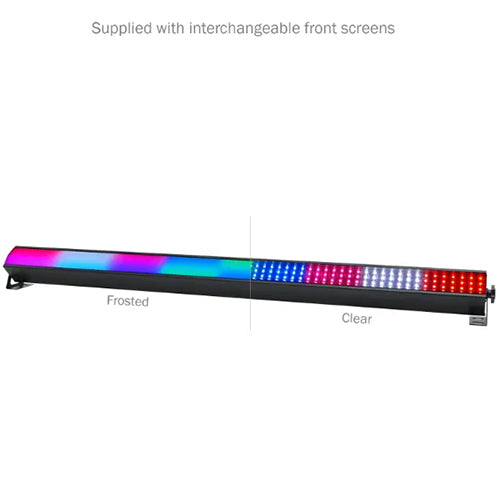

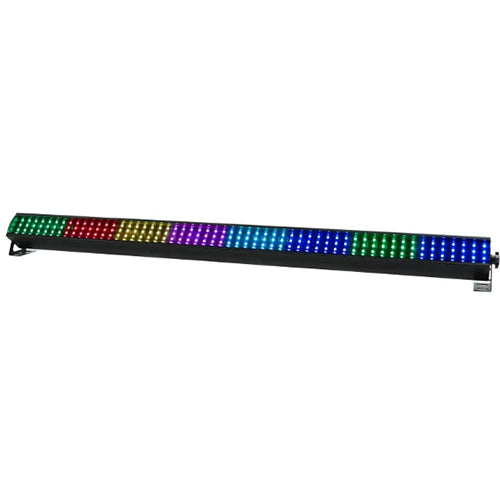

The SpectraPix Batten contains 224 SMD 5050 RGB LEDs divided into 16 segments. They feature a wide 120° viewing angle and milky, frost effect front screen. A clear front screen is also included to further expand the versatility of this fixture. Onboard features include colour mixing to create soft washes from its rich colour palette, and chase programs controlled in auto mode or activated by music. A number of chase programs are included and can be selected by the control panel along with speed and variable strobe.

224 tri-colour SMD 5050 LEDs (RGB)

Viewing angle: 120°

Refresh rate: 10kHz

DMX channels: 3/3/5/24/48 or 53 selectable

Static colour, auto, sound active and master/slave modes plus built-in programs

0 - 100% dimming

Variable strobe

4 button menu with LED display

IEC power input/output

3-Pin XLR input/output

Convection cooled

Specifications:

Power consumption: 50W

Power supply: 100~240V, 50/60Hz

Fuse: F3A 250V

Dimensions (H x W x D): 85 x 1035 x 60mm

Weight: 1.5kg
