 - Chauvet COLORband PIX M ILS - Moving Batten 10x9W RGB LEDs and Pixel M

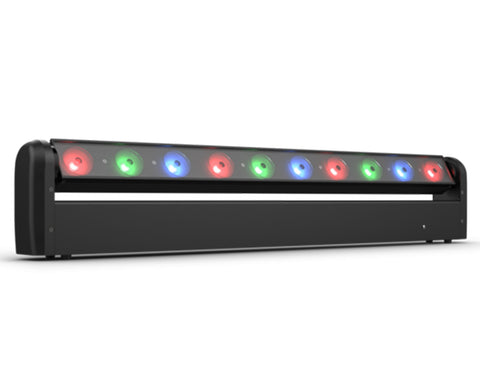

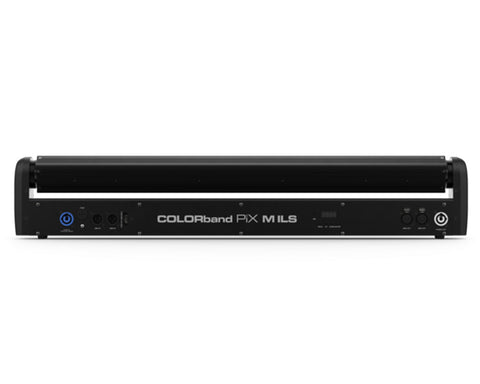

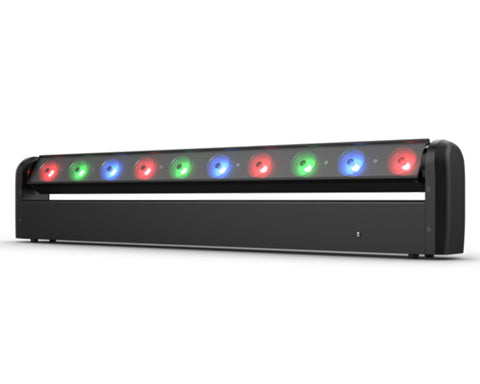

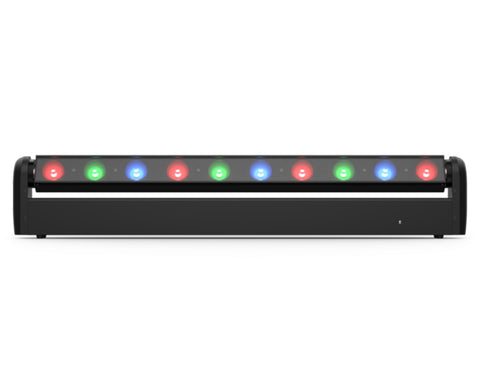

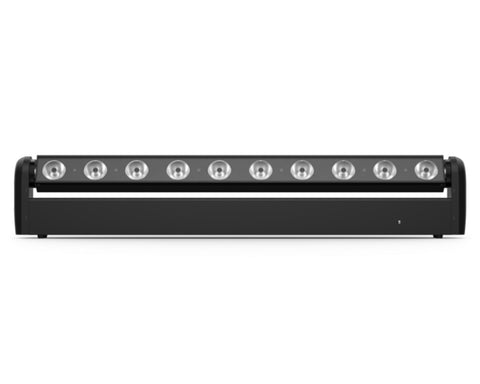

Chauvet COLORband PIX M ILS - Moving Batten 10x9W RGB LEDs and Pixel Map







        type: LED BATTONS
          Vendor: CHAUVET
        Description:
Add the power of a full-size linear wash light with 10 tri-color (RGB) LEDs, sweeping movement and a staggering array of control options and you get COLORBand Pix M ILS, a fixture that will light up any event and ignite it with energy! This moving strip light creates dynamic sweeping effects and functions as a pixel mapping effect, blinder or wall-washer. You can also just angle the light where it’s needed using the built-in motors. But the true excitement comes when you create eye-catching animations and video effects with individual LED control. Controlling this powerhouse couldn’t be easier or more convenient. It has a built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes, ILS compatibility for use in the ILS ecosystem, and D-Fi USB compatibility for wireless master/slave or DMX control. Even DMX connection options are flexible with onboard 3 and 5-pin DMX connectors.
Moving strip light creates dynamic sweeping effects
functions as a pixel mapping effect, blinder or wall-washer
Built-in RF receiver for wireless control using the RFC
RFC-XL optional remotes
ILS compatibility for use in the ILS ecosystem
D-Fi USB compatibility for wireless master/slave or DMX control
Flexible control options with onboard 3 and 5-pin DMX connectors
Angle the light where it’s needed using the built-in motors
Create eye-catching animations and video effects with individual LED control
powerCON®-compatible power input/output connections for power linking
Moving strip light creates dynamic sweeping effects
functions as a pixel mapping effect, blinder or wall-washer
Built-in RF receiver for wireless control using the RFC
RFC-XL optional remotes
ILS compatibility for use in the ILS ecosystem
D-Fi USB compatibility for wireless master/slave or DMX control
Flexible control options with onboard 3 and 5-pin DMX connectors
Angle the light where it’s needed using the built-in motors
Create eye-catching animations and video effects with individual LED control
powerCON®-compatible power input/output connections for power linking
SPECIFICATIONS:
DMX Channels: 5, 6, 8 ,10, 17, 32, or 36
DMX Connectors: 3- and 5-pin XLR
Tilt: 245°
Light Source: 10 LEDs (tri-color RGB) 6 W, (2A), 50,000
hours life expectancy
Strobe Rate: 0 to 29 Hz
Beam Angle: 15°
Field Angle: 27°
Illuminance: 7,441 lux @ 2 m
Power Linking: 12 units @ 120 V; 20 units @ 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 86 W, 1.2 A @ 120 V, 60 Hz
Power and Current: 84 W, 0.7 A @ 230 V, 50 Hz
Bracket Mounting Hole: 13 mm
Weight: 8.2 lb. (3.7 kg)
Size: 31 x 2.6 x 4.8 in (785 x 67 x 123 mm)
Optional Controllers: RFC, RFC-XL
Approvals: CE, UKCA, ROHS
